Delivering precision, shaping excellence
To guarantee the highest quality products, Blacks uses cutting-edge equipment that allows precision and reliability at every stage of the process. Our machine fleet includes 5-axis CNC machining centres, advanced automatic cutting systems, 3D printers and scanners.
Advanced technological assets
To meet the challenges of the market and anticipate future trends, we rely on state-of-the-art technology at all stages of our production process. Operating on a total production area of 5,800 square metres, flanked by 4,200 square metres of green area on two adjoining plants, our production systems are interconnected according to Industry 4.0 principles, integrated with MES and managed through SAP Business One. This combination of state-of-the-art equipment and advanced systems allows us to guarantee maximum precision, repeatability and an impeccable surface finish in every project.
WAREHOUSE
> 300 sqm. -18°C storage
> 22 sqm. 0°C storage
> 15 cum. Vertical Warehouse
> 400 sqm. storage of non-perishable raw materials
ENGINEERING OFFICE
> Up to 20 workstations
> Rhinoceros
> Catia V5
> Solid works + 3d experience premium
> Laminate tools by Anaglyph
MODELING AND 3D – LAB
> 350 sqm. dedicated area
> 5-axis Antares CMS 26/15
Travels of 2600 x 1500 x 1200mm
Software: AUTODESKPOWERMILL POWERSHAPE
> Stratasys Fortus 450mc
Technology: Fused Deposition Modeling (FDM)
Printing area: 406 x 355 x 406 mm
> Formlab Form 3L
Technology: Low Force Stereolithography (LFS)
Printing area: 335 x 205 x 300 mm
CUT
n. 3 Cutting Trading HI RAPTOR
> 1 – Size 2.60 m x 4.20 m with conveyor bed.
Precision 0.2mm
Maximum speed 1200 mm/s
> 2 – Size 2.60 m x 4.20 m with conveyor bed.
Precision 0.2mm
Maximum speed 1200 mm/s
> 3 – Size 2.10m x 3.20m with conveyorbed
Precision 0.2mm
Maximum speed 1200 mm/s

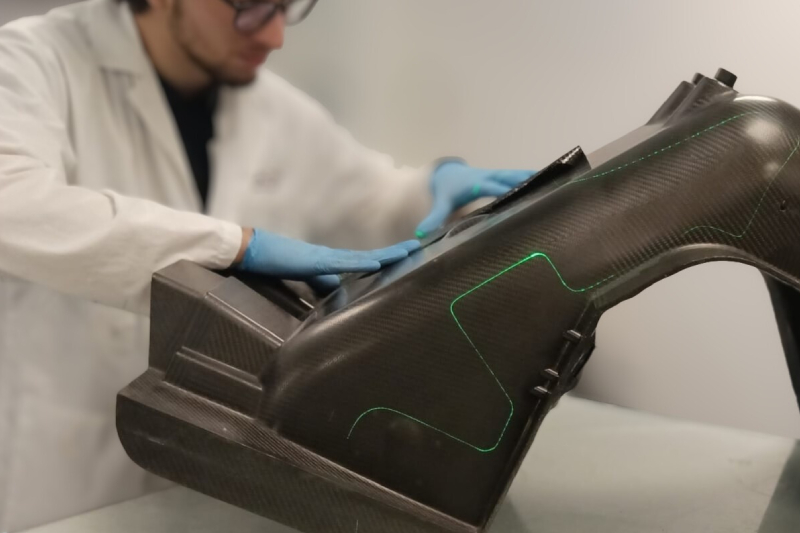

LAMINATION
> 750 mq. lamination area, ISO 8 clean room with filtered air, controlled humidity and higher air, pressure compared to the outside.
> Up to 120 workstations
CURING
n.4 autoclaves:
> 1 – Autoclave (Magnabosco)
Working size: 1.4 m (Ø) x 6.0 m
T up to 200°C; p up to 7 bar
> 2 – Autoclave (Irop)
Working size: 2.0 m (Ø) x 4.0 m
T up to 220°C; p up to 11 bar
> 3 – Autoclave (Italmatic)
Working size: 1.5m (Ø) x 5m
> 4 – Autoclave (Italmatic)
Working size: 2.5m (Ø) x 5m
n. 2 ovens:
> 1- CTM OVEN
Working size: 2m x 2 m x 1.5 m
T up to 300°C
> 2 – CTM OVEN
Working size: 3m x 2m x 2m
FINISHING PROCESSES
> n. 22 trimming stations
> n. 3 automatic trimming stations
> Spanesi coating system Compliant with the EN 13355 standard
Oven size 6.0 m x 4.0 m x 2.7m
Max drying temperature 90°C.
> 100 sqm. bonding area
QUALITY CONTROL AND THERMAL ANALYSIS
> n.2 MetraSCAN 3D TM BLACK Elite
1,800,000 measures/second
0.025 mm accuracy
16 m³ scanning volume
Software: VX elements, Licenze VX Model and VX inspect
> TG 209 F3 Tarsus
> DSC 214 Polyma
> 150 sqm. dedicated area
CERTIFICATIONS
> ISO 9001:2015
> ISO 14001:2015
> Rating legalità
Our success is based on the professionalism and expertise of the Blacks technical team, which uses state-of-the-art working methodologies to optimise each project.
Blacks offers its customers a production cycle tailored to meet the specific needs of each project. Our work team manages every step of the process: from design to the final production of the product, with a constant emphasis on quality and efficiency.
